Difference between revisions of "BPI-9460 IEEE 802.3af Isolation Model PoE module"

From Banana Pi Wiki
Jump to: navigation, search
(RT9460S Typical Connection Diagram)

(11 intermediate revisions by the same user not shown)
Line 1: Line 1:

=Description=

=Description=
 +
[[File:BPI-9406_AF_POE_PD_Module_1.jpg|thumb|[[BPI-9460 IEEE 802.3af Isolation Model PoE module]]]]
 +
[[File:BPI-9406_AF_POE_PD_Module_2.jpg|thumb|[[BPI-9460 IEEE 802.3af Isolation Model PoE module]]]]
 +
 +
[[File:PoE_Splitter_module_1.jpg|thumb|[[BPI-7604 IEEE 802.3af PoE Splitter module]]]]
 +

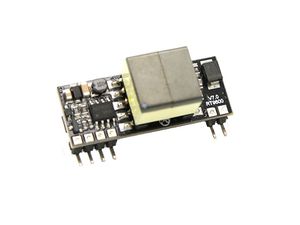

[[File:BPi-9600 Poe 4.jpg|thumb|[[BPI-9600 IEEE 802.3af PoE module]](5V 2A)]]
 +
[[File:BPI-7402_IEEE_802.3at_PoE_module_1.jpg|thumb|[[BPI-7402 IEEE 802.3at PoE module]](12V 2A)]]
 +
[[File:BPI-6175_Single_channel_PoE++_BT_PSE_Module_3.jpg|thumb|[[BPI-6175 Single channel PoE++ BT PSE Module]]]]
 +
 +

The BPI-9460 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.

The BPI-9460 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.

The BPI-9460 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The RT9460  provides a Class 0 signature.The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.

The BPI-9460 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The RT9460  provides a Class 0 signature.The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.
Line 100: Line 109:


Reducing the output voltage, connect R2 between ADJ and +VDC

Reducing the output voltage, connect R2 between ADJ and +VDC
 +
{| class="wikitable"
 +
|-
 +
|  ||R2 Value ||output voltage ||R2 Value ||output voltage
 +
|-
 +
|BPI-9460-3.3V ||open ||3.3V ||0R ||2.8V
 +
|-
 +
|BPI-9460-5V ||open ||5V ||0R ||4.4V
 +
|-
 +
|BPI-9460-12V ||open ||12V ||0R ||9.9V
 +
|-
 +
|BPI-9460-24V ||open ||24V ||30K ||18.2V
 +
|}
 +
Increasing the output voltage, connect R1 between ADJ and -VDC
 +
{| class="wikitable"
 +
|-
 +
|  ||R1 Value ||output voltage ||R1 Value ||output voltage
 +
|-
 +
|BPI-9460-3.3V ||open ||3.3V ||0R ||3.7V
 +
|-
 +
|BPI-9460-5V ||open ||5V ||0R ||5.7V
 +
|-
 +
|BPI-9460-12V ||open ||12V ||0R ||12.8V
 +
|-
 +
|BPI-9460-24V ||open ||24V ||0R ||25.5V
 +
|}
 +
 +
==Reliability MTBF==
 +
About the life time ,we design according to the following:
 +
1)life time of RT9460  : 100,000 hours @ 25°C

  R2 Value output voltage R2 Value output voltage
+
==Safety test items & test report==
BPI-9460-3.3V open 3.3V 0R 2.8V
+
{| class="wikitable"
BPI-9460-5V open 5V 0R 4.4V
+
|-
  BPI-9460-12V open 12V 0R 9.9V
+
|Test Requested ||Test result
BPI-9460-24V open 24V 30K 18.2V
+
|-
+
|Electric strength -1500Vrms at 50 to 60Hz for 60s, applied as specified in subclasuse 5.2.2 of IEC 60950 ||Pass
Increasing the output voltage, connect R1 between ADJ and -VDC
+
|}
 +

 +
==Mechanical / Environmental Performance data==
 +
{| class="wikitable"
 +
|-
 +
|  ||Item ||Requirement and Standard
 +
|-
 +
|1 ||Resistance to Wave Soldering Heat|| max Preheat Temp range & time 120 ℃ / 180S,max soldering temp &time:265 ℃ / 4S
 +
|-
 +
|2 ||Solder ability ||Solder able area shall have minimum of 95% solder coverage.And then into solder bath,Temperature at 245 ±5 ℃  , for 4-5sec.
 +
|-
 +
|3 ||Hand Soldering Temperature Resistance ||T > =350 ℃  , 3sec at least.
 +
|-
 +
|4 ||Thermal Shock ||subject to follow condition for 5 cycles.1 cycles:-55 ℃    , 30 minutes;+85 ℃    , 30 minutes
 +
|-
 +
|5 ||Humidity(Temp Cycling) ||less than 95% (non-condensing) ( -20 to 70 ℃)
 +
|-
 +
|6 ||Temperature Life ||temperature life at 85℃ for 96 hours.
 +
|-
 +
|7 ||Salt Spray ||connectors to 5% salt-solution concentration, 35 ℃ ,Gold flash for 8 hours there will be no change in the gold layer
 +
|}

  R1 Value output voltage R1 Value output voltage
+
=Module size=
BPI-9460-3.3V open 3.3V 0R 3.7V
+
==BPI-9460 PackageSize:(mm)==
BPI-9460-5V open 5V 0R 5.7V
+
[[File:Poe_9406_1.jpg]]
BPI-9460-12V open 12V 0R 12.8V
+
==BPI-9460 PCB Package :(mm)==
BPI-9460-24V open 24V 0R 25.5V
+
[[File:Poe_9406_2.jpg]]

Latest revision as of 19:48, 1 March 2022

Description


The BPI-9460 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard. The BPI-9460 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The RT9460 provides a Class 0 signature.The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.

Applications

  • IP Cameras
  • Wireless access point
  • Security and alarm systems
  • VOIP telephone
  • Point of sale network terminal equipment

Features

  • IEEE802.3af compliant
  • Input voltage range 36V to 57V
  • Integral high efficiency DC/DC converter.
  • Low output ripple and noise
  • High performance with low price
  • Short-circuit protection
  • Adjustable Output
  • Optional multi-voltage output 3.3V 5V 12V 24V
  • Transformer isolation ,1500V isolation (input to output)
  • Easy to use, with a minimum number of external components.
  • Rohs compliantnt

Hardware

BPI-9460 Product Selector

Part Number Nominal Output Voltage Output current Maximum Output Power* Marking Package
BPI-9460S-3.3V 3.3V 2A 10W** 3.3V SIL
BPI-9460S -5V 5V 2.4A 13W** 5V SIL
BPI-9460S -12V 12V 1A 13W** 12V SIL
BPI-9460S -24V 24V 0.5A 13W** 24V SIL
  • At 25°C with VIN = 48V
    • Maximum Output Power: means it not could be operated in continuous stage .only short-term of Boot up/Heavy loading

Absolute Maximum Ratings

  Parameter Symbol Min Max Units
1 DC Supply Voltage VCC -0.3 60 V
2 DC Supply Voltage Surge for 1ms VSURGE -0.6 80 V
3 Storage Temperature TS -40 100 OC

Note 1: Exceeding the above ratings may cause permanent damage to the product. Functional operation under these conditions is not implied. Maximum ratings assume free airflow.

Recommended Operating Conditions

  Parameter Symbol Min Typ Max Units
1 Input Supply Voltage1 VIN 36 48 57 V
2 Under Voltage Lockout VLOCK 30   36 V
3 Operating Temperature2 TOP -20 25 70 Ta / OC

Note

  • 1: With minimum load
  • 2: See Section Operating Temperature Range
    • Extended use close to, or at the maximum operating temperature can reduce the life time of the device.

Pin Description:

Pin # Name Description
1 VA1 RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1&2 of the RJ45 connector (RX) - it is not polarity sensitive.BPI-9460S this pin is direct Input +. This pin connects to the positive (+) output of the input bridge rectifier.
2 VA2 TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3&6 of the RJ45 connector (TX) - it is not polarity sensitive.BPI-9460S this pin is direct Input -. This pin connects to the negative (-) output of the input bridge rectifier.
3 VB1 Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive.BPI-9460S this pin is direct Input +. This pin connects to the positive (+) output of the input bridge rectifier.
4 VB2 Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive.BPI-9460S this pin is direct Input -. This pin connects to the negative (-) output of the input bridge rectifier
5 -VDC DC Return. This pin is the return path for the +VDC output.
6 +VDC DC Output. This pin provides the regulated output from the DC/DC converter.
7 ADJ Output Adjust. The output voltage can be adjusted from is nominal value, by connecting an external resistor from this pin to either the +VDC pin or the -VDC pin.

DC Electrical Characteristics

9406.png Note

  • 1: Typical figures are at 25°C with a nominal 48V supply and are for design aid only. Not Guaranteed
  • 2: The output ripple and noise can be reduced with an external filter, see application note.
  • 3: Continuous short circuit duration is applicable at 25'C ambient temperature in free air. At higher temperatures or with restricted airflow (e.g. in a sealed enclosure) the duration will need to be limited to avoid overheating.

RT9460S Typical Connection Diagram

9460s connect.png

Reducing the output voltage, connect R2 between ADJ and +VDC

  R2 Value output voltage R2 Value output voltage
BPI-9460-3.3V open 3.3V 0R 2.8V
BPI-9460-5V open 5V 0R 4.4V
BPI-9460-12V open 12V 0R 9.9V
BPI-9460-24V open 24V 30K 18.2V

Increasing the output voltage, connect R1 between ADJ and -VDC

  R1 Value output voltage R1 Value output voltage
BPI-9460-3.3V open 3.3V 0R 3.7V
BPI-9460-5V open 5V 0R 5.7V
BPI-9460-12V open 12V 0R 12.8V
BPI-9460-24V open 24V 0R 25.5V

Reliability MTBF

About the life time ,we design according to the following: 1)life time of RT9460  : 100,000 hours @ 25°C

Safety test items & test report

Test Requested Test result
Electric strength -1500Vrms at 50 to 60Hz for 60s, applied as specified in subclasuse 5.2.2 of IEC 60950 Pass

Mechanical / Environmental Performance data

  Item Requirement and Standard
1 Resistance to Wave Soldering Heat max Preheat Temp range & time 120 ℃ / 180S,max soldering temp &time:265 ℃ / 4S
2 Solder ability Solder able area shall have minimum of 95% solder coverage.And then into solder bath,Temperature at 245 ±5 ℃ , for 4-5sec.
3 Hand Soldering Temperature Resistance T > =350 ℃ , 3sec at least.
4 Thermal Shock subject to follow condition for 5 cycles.1 cycles:-55 ℃ , 30 minutes;+85 ℃ , 30 minutes
5 Humidity(Temp Cycling) less than 95% (non-condensing) ( -20 to 70 ℃)
6 Temperature Life temperature life at 85℃ for 96 hours.
7 Salt Spray connectors to 5% salt-solution concentration, 35 ℃ ,Gold flash for 8 hours there will be no change in the gold layer

Module size

BPI-9460 PackageSize:(mm)

Poe 9406 1.jpg

BPI-9460 PCB Package :(mm)

Poe 9406 2.jpg
